MID-1K

Multimodal ISR Dataset [MID-1K]

For RAC/RML2024 Course - Google Notebook

This dataset, collected by the ISR (Institute of Systems and Robotics) Team, is a new multi-sensory dataset that was organized, calibrated, curated, and annotated. The sensory data was collected using ROS and a Jackal Clearpath mobile robot (see Fig. 1), operating in two indoor environments: three floors of the DEEC building and two floors of DEI building at the University of Coimbra, Polo 2, Portugal.

You can clone this dataset to your local environment using the git clone command. Simply open the terminal and follow these steps:

   git clone https://github.com/kennedyk1/MID-1K

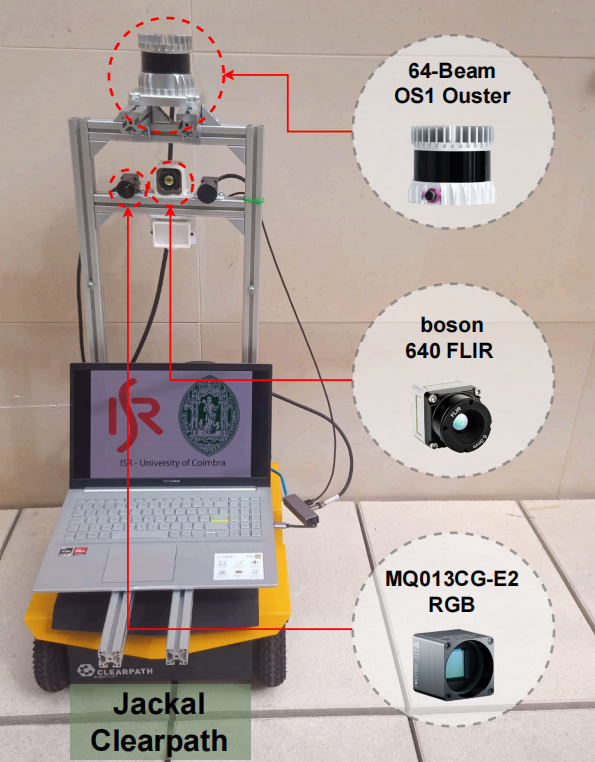

Fig. 1: Sensors on mobile robot, Clearpath Jackal model: (RGB) Ximea MQ013CG-E2, (Thermal) Flir Boson 640x512 pixels, Lens 50º 8.7mm, 60 fps, and (LiDAR) Ouster OS1-64.

The dataset consists of 1100 selected frames, containing RGB, thermal and depth-map images (generated from LiDAR) totaling 3300 image files (see Fig. 2). The sensors have been calibrated, but a small temporal misalignment is present due to hardware limitations.

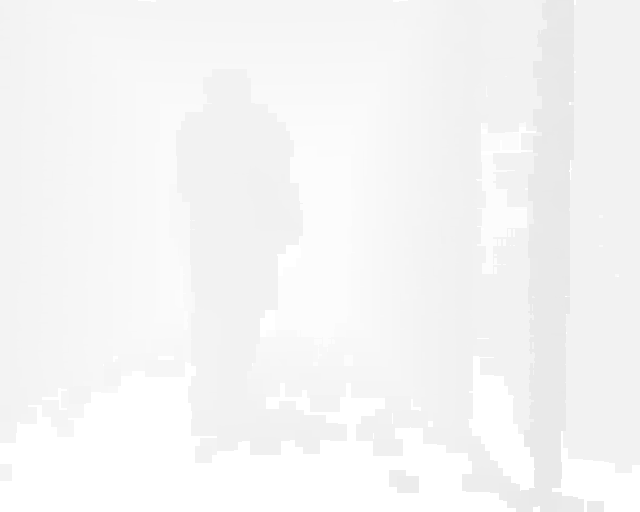

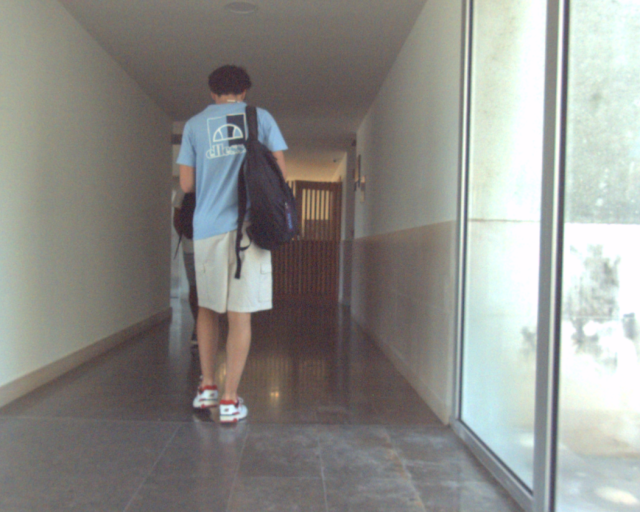

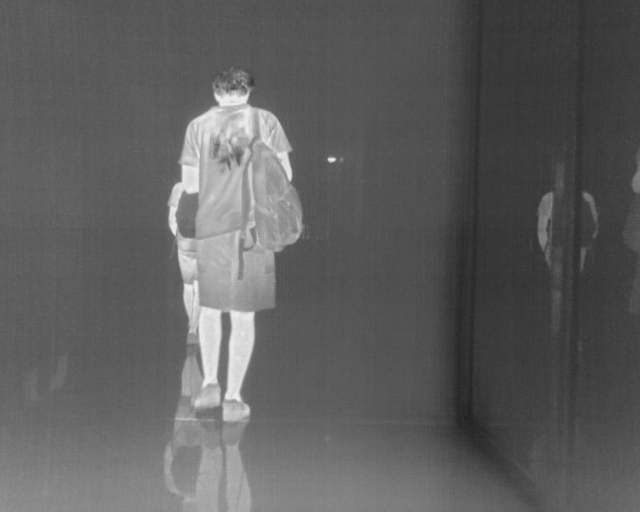

Fig. 2: Dataset frame-examples composed of Depth-LiDAR, RGB and Thermal modalities.

The dataset was split into training and test sets. The training set contains 703 images and 2191 annotations, while the test set contains 397 images and 1629 annotations. The depth image representation was generated from the projected LiDAR point clouds using a modified bilateral filter. In particular, each LiDAR point cloud is projected on the RGB image-plane, considering the Camera-LiDAR calibration matrix, and then a sliding-window based weighing function, dependent on the range dispersion, is used to interpolate the points inside the mask therefore generating a dense representation.

Dataset Details
Total Files	6,600 files
Total Images	3,300 images
Total Annotations	3,300 txt files
Dataset Size	Approximately 750 MB
Images Resolution	640x512 pixels
Annotation Format	YOLO
Data Distribution	#Images
Depth Images	1,100
RGB Images	1,100
Thermal Images	1,100

	RGB	Thermal	Depth
Model	Ximea MQ013CG-E2	FLIR BOSON 640 LWIR	OUSTER OS1-64-U
Type	Colour Camera	Thermal Camera	LiDAR
Spec.	1280x1024 pixels, 1.3 MP	640x512 pixels	Vert. Res.: 64 channels Hor. Res.: 1024 points
Image Type	.png	.png	.png
Total Images	1,100	1,100	1,100
Total Files Annotations	1,100 txt files	1,100 txt files	1,100 txt files
Total Annotations (people)	3,820	3,797	3,820¹
Images Resolution	640x512	640x512	640x512
Annotation Format	YOLO xywhn²	YOLO xywhn²	YOLO xywhn²
¹ The labels from the RGB modality were used because the LiDAR was calibrated with the RGB camera. ² YOLO normalized xywh format class x_center y_center width height

Visit our datasets through the links below.

MID-1K - Multimodal ISR Dataset with 1100 images (RGB, thermal and depth)
MID-3K - Multimodal ISR Dataset with 3000 images (RGB, thermal, depth and intensity)

References

Sousa, E., Mota, K. O., Gomes, I. P., Garrote, L., Wolf, D. F., & Premebida, C. (2023, September). Late-Fusion Multimodal Human Detection Based on RGB and Thermal Images for Robotic Perception. In 2023 European Conference on Mobile Robots (ECMR) (pp. 1-6).
Kennedy O. S. Mota, Luís Garrote, Cristiano Premebida. Multimodal Human Detection using RGB, Thermal and LiDAR modalities for Robotic Perception. In 2024 IEEE 20th International Conference on Automation Science and Engineering (CASE), Bari, Italy.
Kennedy O. S. Mota, Diogo S. de Oliveira, Luís Garrote, Cristiano Premebida. Multimodal Human Detection Using YOLO and Representation Learning for Robot Perception. In Seventh Iberian Robotics Conference (ROBOT 2024), Madrid, Spain. [Preview Document]
